Baldwin Brass Hardware Depot presents -
Baldwin Estate Collection mortise trimsets - Baldwin's finest door hardware

Pictured below are examples of the Baldwin Brass entrance MORTISE locks. These handlesets all use full mortise bodies and generally will not fit in most prebored doors with the usual two hole prep. (There are exceptions). You can mix and match any combination of the styles shown here and any finish to make truly customized designs for any architectural design requirement. Remember - Unlike all other Baldwin hardware dealers we have installed thousands of Baldwin mortise locks over our 34 years of door hardware retailing.

Mortise trimset catalog and dimensional info PDF click HERE

How to install a Baldwin mortise lock click HERE
 Estate series mortise body specifications click HERE
Estate series finishes click HERE

IMPORTANT - Baldwin Hardware always recommends a qualified dealer to advise you on exactly what you need, this is NOT done by any "shopping cart" online order website. There are many factors that are involved in correctly ordering a Baldwin mortise lock. We have installed mortise locks for 30 years and can advise you on any aspect of Estate door hardware.

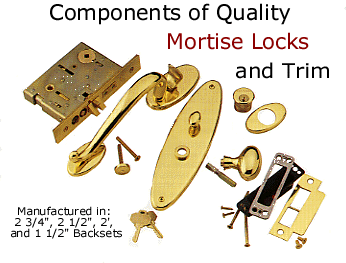

Click on mortise body to see closeup!In this illustration, you see the components that make up a Baldwin mortise lockset. Note the large lock "case" in the upper left. That is a mortise body, the key part of a Baldwin Brass Estate entrance set. It is that body which must fit into your door. This picture shows all the parts that you would receive with a 6560 "Lexington" mortise lock.

    Toll Free Voice (888) 306-2298
    Toll Free Fax (888) 306-9303
    Email:  info@baldwinbrassdepot.com





Mortise body required for ALL trimsets on this page. Click on body for more in-depth info

Baldwin Brass Hardware mortise trimset examples


Questions? Give us a call at (888) 306-2298 or drop us an email at info@baldwinbrassdepot.com



New 6976 Minneapolis
BBDContemp.pdf

Mortise trimset catalog and dimensional info PDF Click HERE



6966 Lakeshore
Outside 1.81" x 17.34"
Inside 1.81" x 10.0"
Lever 5162


6974 Lakeshore
Plates 1.81" x 10.0"
Lever 5162




6973 Houston
BBDContemp.pdf


Cody M504 Full escutcheon available with knob or lever

Soho M516 w/ lever

 Future additions

Boulder M514 Full escutcheon available with knob or lever
Boulder M512 3/4 escutcheon available with knob or lever
Cody M502 3/4 escutcheon available with knob or lever

6515 Sectional Edinburgh

6516 Oval Edinburgh

6520 Sectional Bristol


6999 Richland
Outside 2.9" x 16.2"
Inside 2.9" x 10.95"
Lever 5190


6944 Pasadena
Outside 3.3" x 19.0"
Inside 3.3" x 13.0"
Knob 5063

6526 Kensington



6540 San Diego
Outside 2.5" x 16"
Inside 2.5" x 10"
Inside knob 5039
6541 San Francisco
Plates 2.25" x 11.8"
Knob 5020
6546 Wilmington
Plates 2.75" x 10.0"
Knob 5025





6552 Baltimore
Plates 3.0" x 10.0"
Knob 5015
6555 Boston
Plates 2.75" x 10.0"
Knob 5000
6572 Plymouth
Outside 2.25" x 15.0"
Knob 5005





6910 Midtown
Plates 1.625" x 8.0"
Lever 5130
6922 Lakewood
Plates 1.875" x 11.25"
Lever 5101
6938 Mobile
Plates 2.0" x 11.5"
Lever 5117





6548 Detroit
Plates 1.625" x 8.0"
Knob 5041
6550 Georgetown
Inside esc plate 4.0" x 6.75"
Knob 5000
6551 Reading
Plates 2.5" x 8.0"
Knob 5015





6939 Bristol Lever
Plates 2.75" x 11.0"
Lever 5104

6935 Republic
Plates 3.3" x 11.0"
Lever 5125





6547 Nashville
Plates 2.75" x 10.0"
Knob 5020






6962 Fenwick
Plates 3.0" x 13.9"
Lever 5122
6924 Vancouver
Plates 1.875" x 8.0"
Lever 5103
6951 Stanford
Plates 3.3" x 10.8'
Lever 5152





6542 Tremont
Outside 3.3" x 17.0"
Inside 3.3" x 11.0"
Inside knob 5020


6573 Springfield
Outside 2.75" x 16.5"
Inside trim 2.75" x 10.0"
Inside knob 5025


6544 Hamilton
Outside 3.3" x 17.0"
Inside 3.3" x 10.8"
Inside lever 5152







6554 Barclay
Trimset  2.75" x 11.0"
Knob 5064


6562 New York
Outside 1.625" x 14.0"
Inside 1.625" x 8.0"
Inside knob 5039


6948 Victoria
Outside 2.4" x 22.6"
Inside 2.4" x 11.0"
Inside lever 5121





6950 Kensington
Outside 2.75" x 19.0"
Inside 2.75" x 11.1"
Inside lever 5108
6952 Edinburgh
Outside 3.0" x 20.8"
Inside 3.0" x 13.9
Inside lever 5122

6963 Bristol
Outside 3.3" x 15.8"
Inside 2.75" x 11.0"
Inside lever 5104





6563 Chicago
Outside 2.5" x 16.0"
Inside 2.5" x 10.0"
Inside knob 5039
6570 Atlanta
Outside 2.25" x 16.0"
Inside 2.25" x 10.0"
Inside knob 5073
6571 Concord
Outside 2.5" x 9.4" (handle)
Inside 2.25" x 8.0"
Inside knob 5000





6565 Monterey
Outside 1.875" x 23.0"
Inside 1.875" x 16.75
Inside knob 5072



6564 Princeton
Outside 2.0" x 18.5"
Inside 2.0" x 13.875
Inside knob 5072



6549 Williamsburg
Outside 2.75" x 16.5"
Inside box 4.0" w x 6.75" h
Inside knob 5000








6942 Bismark
Trimsets 1.75" x 8.312"
Lever 5152

6560 Lexington
Outside 2.25" x 11.5"
Inside 2.75" x 10.0"
Inside knob 5025
6545 Empire
Outside 3.125" x 16.8
Inside 3.125" x 11.0"
Inside knob 5039







6556 Charleston
Outside 3.0" x 14.0"
Inside 3.0" x N/A
Inside knob 5020




6931 Dallas
Outside 1.625 x 14.0"
Inside 1.625" x 10.0"
Inside lever 5105
6568 Renssalear
Outside 3.1" x 19.0"
Inside 3.1" x 8.0'
Inside knob 5020
